Showcase (STM32F746)
The same runtime on entirely different silicon: an STM32F7 with a 4.3" landscape screen, ethernet and capacitive touch.
Project: examples\f746_disco_example.yaml
Board: ST 32F746G-DISCOVERY, 480×272 landscape
Needs: nothing wired up — it runs in simulation as it is
What it shows
That a project is not tied to a chip family. The same languages, the same widgets, the same pack format, the same editor — a different board underneath, and nothing about the project has to know.
It is also the project that proves the small things work on a new target: the font carries accented characters, the icons are sharp, the clock is set, and bit access is atomic while three writers use one word.
The screens
Main. A value in a large font — the fastest thing on any screen to read — with vector icons and switches bound to variables. The bar under the temperature is the same value again, because a number tells you what and a bar tells you where in the range.
Info. The line of accented text is deliberate: Príliš žltučký kôň úpel ďábelské ódy is the proof that the font carries the characters your language needs. That is a thing to find out at your desk rather than on a finished board in front of somebody.
Below it, bit access — a switch writing one bit of a word the logic is hammering at the same time, and neither losing the other's work.
States. The picture worth understanding: four lamps on four bits of one 16-bit variable, with no logic between them.
Two bits are driven by the program at different rhythms, one by the switch on the Info screen, one by the switch beside them. Three independent writers into one word, and none of them can undo another.
That is exactly how a drive's status word is displayed — and it is one variable, four widgets, no code.
Online, on the real board

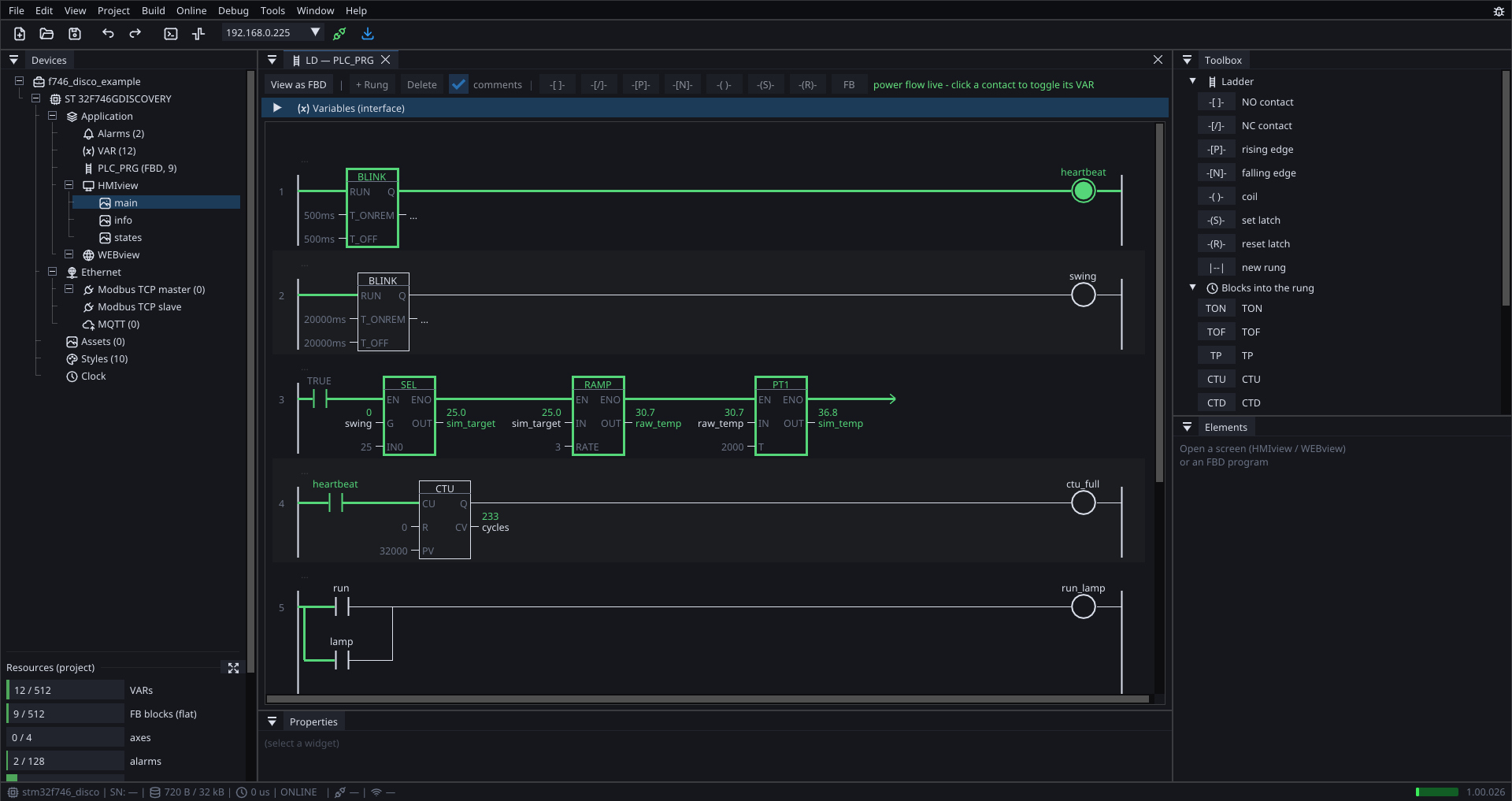

The program with the board running: green is current flowing, and every pin carries its live value — the simulated temperature at 30.7, the filter's output at 36.8, the counter at 233.
This board is on ethernet, so that view came over the network: the editor takes an IP address anywhere it would take a COM port.
Worth copying from it
- a row of lamps reading a status word. Four widgets, one variable, no logic — and it is how every fieldbus device's state is displayed.
- an alarm shown twice: as a lamp taking its colour from the alarm system, and in an alarm table. One definition, two ways to notice it.
- a landscape layout that stays readable at arm's length — one big number, everything else supporting it.
- a test line of your own language's text on a screen you keep. It costs one label and it catches the font problem that otherwise appears at the worst moment.
Try changing
- flip bit 1 from the Info screen and watch the lamp on States follow — then flip bit 3 there and watch the number under the lamps change by 8
- change the sweep of
sim_tempand watch the high alarm fire and clear itself - open
http://<board>/in a phone while it runs: the same screens, drawn by the browser
