What Modbus is

What Modbus is

Modbus is the oldest fieldbus still in daily use — published in 1979 for Modicon PLCs, and alive today for one reason: it is simple enough that everything speaks it. Energy meters, drives, I/O modules, SCADA packages, one-euro temperature transmitters — if an industrial device has a communication port at all, Modbus is the protocol it is most likely to offer.

This page explains the protocol itself: what the registers are, why the same register has three different numbers in three different manuals, and where the classic traps come from. How to configure it in a project is on Modbus.

---

One master asks, slaves answer

Modbus is a request–response protocol. One side — the master (TCP manuals say client) — sends a request: "device 1, give me 2 registers from address 0." The addressed slave (server) answers with the values, or with an error. That is the whole protocol. There are no events, no subscriptions, no device discovery: a slave never speaks unless asked, and everything the master knows, it knows because it keeps asking.

That simplicity carries consequences worth knowing:

Modbus has no…	So in practice…
discovery	you must be told the address and the map — nothing announces itself
data types on the wire	a register is 16 bits, full stop; what they mean comes from the device manual
units or names	register 12 is just register 12 — the map in the manual is the contract
events	fresh data costs a poll; the master decides the rate

A device is therefore only usable together with its register map — the table in its manual saying which address holds what. Reading a Modbus manual is the skill; the rest is configuration.

---

The four tables

A slave exposes up to four separate data tables. Two hold bits, two hold 16-bit registers; two are read-only, two writable:

Table	Holds	Access	Classic prefix	Typical content
Coils	bits	read + write	0x	outputs, commands, enable flags
Discrete inputs	bits	read only	1x	input terminals, status bits
Input registers	16-bit words	read only	3x	measurements
Holding registers	16-bit words	read + write	4x	setpoints, parameters, and in practice measurements too

The names are historical — a "coil" was literally a relay coil in 1979. Do not read meaning into them beyond the access rules: many devices put measurements into holding registers simply because one table is easier to implement than two.

Each table has its own address space starting at 0. Coil 3 and holding register 3 are different things in different tables — the request says which table it wants via the function code.

Function codes

The request carries a function code — table + operation in one number. The handful you will actually meet:

FC	Does	On table
1	read bits	coils
2	read bits	discrete inputs
3	read registers	holding
4	read registers	input
5	write one bit	coils
6	write one register	holding
15	write several bits	coils
16	write several registers	holding

When something is wrong, the slave answers with an exception instead of data:

Exception	Meaning	What it usually tells you
01	illegal function	the device does not support that FC
02	illegal data address	you are reading outside its map — check the addressing notation below
03	illegal data value	write refused: out of range, or the register is read-only
04	slave device failure	the device took the request and failed internally

An exception is the good failure mode: the device answered and told you why. No answer at all is the wiring/baud-rate/address class of problem, not the map class.

---

Why the same register has three numbers

The single largest source of Modbus confusion — and of "address off by one" bugs — is that three addressing notations coexist, and every manual picks one without saying so.

On the wire the address is a plain number counted from 0 within one table. This is the protocol address — the only one the devices themselves ever see.

In manuals you will meet two older conventions built on top:

• 1-based counting — the first register is called "1", so the manual's register 1 is protocol address 0, and everything is shifted by one.
• The 5-digit notation — the table prefix glued onto the 1-based number: 40001 means "holding register, the first one" (protocol address 0). 30007 is input register, protocol address 6.

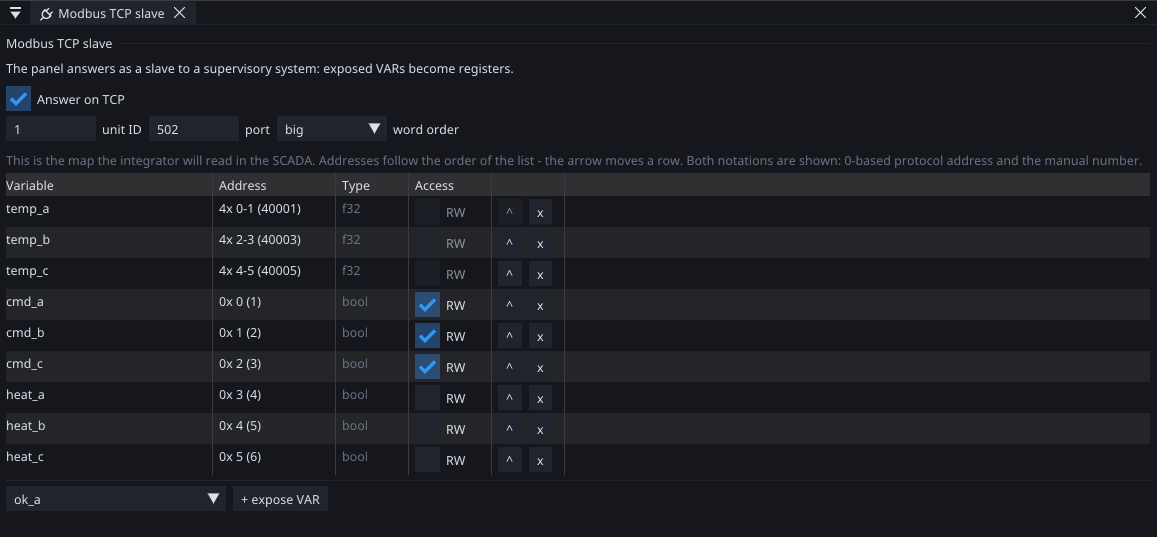

The same physical register, spelled every way it can be:

Protocol address (ctrl32)	5-digit notation	1-based manual	IEC address
holding 0	40001	register 1	%MW0
holding 6	40007	register 7	%MW6
input 2	30003	register 3	—
coil 3	00004	coil 4	%MX3

The IEC column is the fourth spelling, from the PLC world: IEC 61131 addresses like %MW100 (memory word) or %MX10 (memory bit). Some PLC vendors document their Modbus maps in it; it counts from 0, like the protocol.

The symptom of getting this wrong is precise: everything is off by exactly one register, or the device answers exception 02 at the edge of its map. When a value looks shifted, try the neighbouring address before suspecting anything else.

---

Registers are 16 bits — bigger values are a convention

The protocol moves 16-bit words. Everything larger is an agreement between the two ends, not a feature of Modbus:

• A 32-bit value (f32, u32, i32) occupies two consecutive registers, and the protocol does not say which half comes first. That is the word order — big (high word first) or little — and it genuinely differs from vendor to vendor. Getting it wrong produces values that are not shifted but nonsense: astronomically large, absurdly small, or jumping wildly while the true value barely moves. It is the most common Modbus fault in the field.
• Scaling is a convention too. A register holding 235 may mean 23.5 °C (×0.1) or 235 V (×1) — the manual's scale factor becomes gain/offset on the variable.
• Signed vs unsigned is again the manual's word: the wire cannot tell −1 from 65535.

---

RTU and TCP

The same protocol travels two ways, and a device usually offers one:

	Modbus RTU	Modbus TCP
carried by	RS485 twisted pair	Ethernet or WiFi
framing	silence gaps + CRC16	a 6-byte header (MBAP), no CRC — TCP already guarantees integrity
device address	unit ID 1–247, set on the device	the IP address; the unit ID usually ignored (1)
topology	one master, up to 32 devices on one cable pair	anything IP reaches; gateways bridge to RTU behind them
speed	9600–115200 baud, timing-sensitive	network speed

Two details that matter in practice:

• On RTU, one line has one master — two masters talk over each other and nothing works. The unit ID is set on the device (DIP switches or a display menu), and every device on the line needs a different one and the same baud rate and parity.
• On TCP, the unit ID still exists in the header. It matters behind an RTU↔TCP gateway, where it selects which serial device behind the gateway you mean — the gateway's IP plus the drive's unit ID.

---
