Two boards over Modbus

Two boards over Modbus

A complete, working pair of projects — the kind of job Modbus exists for. One board sits at the process: it measures three PT100 temperatures and switches three heater outputs. The other is the operator's panel: it shows the temperatures and takes the commands. Between them, nothing but Modbus TCP.

	Board	Transport	Role	Project file
At the process	inoCORE32-TM8.6	WiFi	Modbus slave — measures, owns the outputs	tm8_6_modbus_slave.yaml
At the operator	STM32F746-DISCO	Ethernet	Modbus master — displays, commands	f7_modbus_master.yaml

Both files are installed with the editor in examples\modbus_pair — open them side by side while reading. Everything below is the real bench pair; the screenshots are of these exact files.

New to Modbus itself — registers, addresses, word order? Read What Modbus is first; this page uses those terms freely.

---

The design decision worth copying

The master does not drive the heaters. It writes a command coil, and the slave's own logic decides whether the output actually closes — a zone whose sensor reads like a broken probe refuses to heat no matter what the master asks. The master then reads back what the output really does and shows that.

This split — the board at the process owns its outputs, the panel only requests and displays — is the difference between a system that survives a WiFi dropout and one that does not. If the link dies, the slave keeps its interlocks; the master keeps showing the last known state and its own connection diagnostics.

---

The slave — TM8.6

Variables and the map

Twelve variables, three groups:

tags:
  # measured temperatures - the MAX31865 drivers write degrees in
  - { name: temp_a, datatype: f32, unit: "°C", decimals: 1, deadband: 0.1,
      source: { periph: { chip: rtd_a, pin: 0 } } }
  # ... temp_b, temp_c the same

  # the master's COMMANDS (written over Modbus as coils)
  - { name: cmd_a, datatype: bool, access: rw }
  # ... cmd_b, cmd_c

  # sensor-ok interlocks, computed by the program
  - { name: ok_a, datatype: bool }
  # ... ok_b, ok_c

  # THE OUTPUTS: SSR relays on real pins
  - { name: heat_a, datatype: bool, access: rw, source: { gpio: { pin: 7 } } }
  # ... heat_b (pin 8), heat_c (pin 19)

The Modbus side exposes nine of them. Addresses are assigned in list order — bool becomes a coil, everything else a holding register, an f32 taking two (see Modbus for the rules):

modbus_slave:
  tcp: true
  port: 502
  unit: 1
  word_order: big
  tags:
    - { tag: temp_a }                    # holding 0-1  (40001)
    - { tag: temp_b }                    # holding 2-3  (40003)
    - { tag: temp_c }                    # holding 4-5  (40005)
    - { tag: cmd_a, writable: true }     # coil 0
    - { tag: cmd_b, writable: true }     # coil 1
    - { tag: cmd_c, writable: true }     # coil 2
    - { tag: heat_a }                    # coil 3 - the REAL output state
    - { tag: heat_b }                    # coil 4
    - { tag: heat_c }                    # coil 5

Two deliberate choices in that map:

• Only the commands are writable. A master writing anywhere else gets exception 03 — the map itself enforces who owns what.
• The real outputs are exposed read-only right after the commands. The master can always compare "what I asked" with "what is happening" — that gap is the interlock speaking.

The editor's Modbus TCP slave page shows this map exactly as the integrator on the other side will read it, in both address notations:

The program

One interlock per zone: the output follows the command only while the probe reads sane. A loose or broken PT100 reads far below zero, so above 2 °C separates a working probe from a fault:

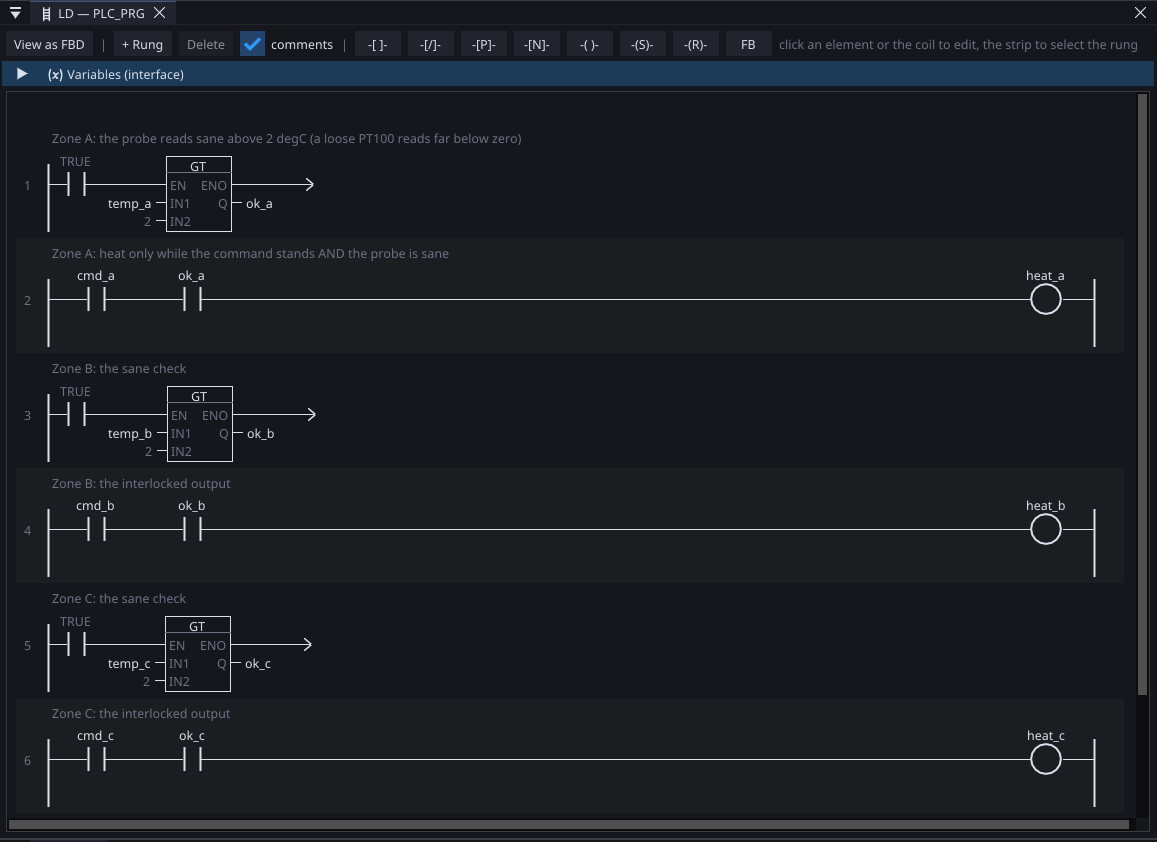

Six rungs, two per zone — the compare writing ok_x, then the classic series pair cmd_x AND ok_x into the heat_x coil. Three alarms with a 3-second delay report a failed probe to both screens.

The three languages

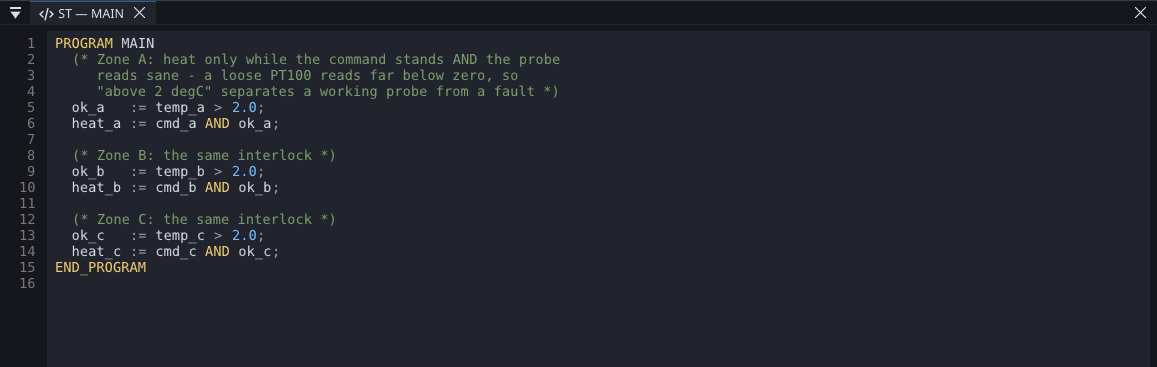

The same program, written three ways — the three files slave_logic_ld.yaml, slave_logic_st.yaml and slave_logic_fbd.yaml sit next to the pair in examples\modbus_pair with identical variables, one language each. They compile to the same behaviour; pick whichever reads best to you. In ST the whole interlock is six lines:

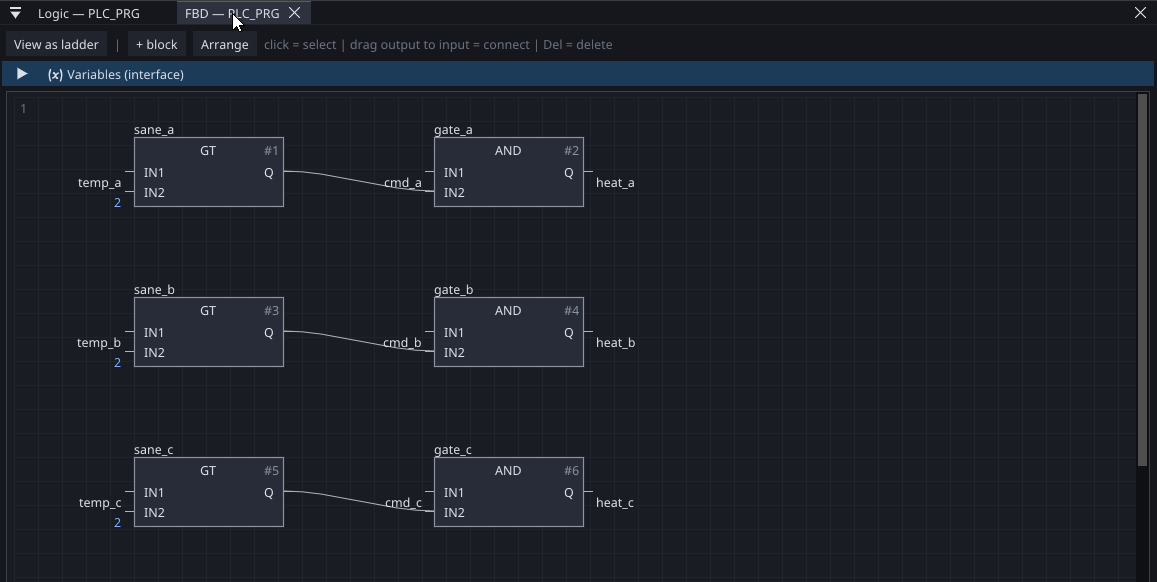

And as a function block diagram, the dataflow view — the GT feeding the AND through the ok_x variable:

There is no better-or-worse here: ladder shows an electrician the interlock at a glance, ST says it in the fewest characters, FBD draws the dataflow. The runtime cannot tell them apart — ladder and FBD compile through the same path as ST, into the same bytecode.

Network

The TM8.6 joins the plant WiFi as a station:

network:
  mode: sta
  ssid: your_network
  password: your_password

It gets its address from DHCP. Give it a DHCP reservation on the router — the master will address it by IP, and a lease change would silently break the pair. On the bench below it lives at 192.168.0.233.

The slave also carries a small WEBview screen showing the three temperatures, the output LEDs and the alarm table. The board has no display of its own — but any phone on the network can see exactly what the master sees, which turns "is it the slave or the link?" into a thirty-second question.

---

The master — F7

Variables: a Modbus source per tag

The master has no program at all — it is pure HMI. Every variable points at the slave:

tags:
  # the slave's temperatures - f32 = TWO holding registers each,
  # and word_order must match the slave (big on both ends here)
  - { name: temp_a, datatype: f32, unit: "°C", decimals: 1, deadband: 0.1,
      source: { modbus: { transport: tcp, ip: 192.168.0.233, unit: 1,
                          fc: holding, address: 0, word_order: big } } }
  # temp_b at address 2, temp_c at address 4

  # commands - rw + a coil source = written TO the slave on change
  - { name: cmd_a, datatype: bool, access: rw,
      source: { modbus: { transport: tcp, ip: 192.168.0.233, unit: 1,
                          fc: coil, address: 0 } } }
  # cmd_b, cmd_c at coils 1, 2

  # what the outputs really do (the slave may say no)
  - { name: heat_a, datatype: bool,
      source: { modbus: { transport: tcp, ip: 192.168.0.233, unit: 1,
                          fc: coil, address: 3 } } }
  # heat_b, heat_c at coils 4, 5

The rule that makes the switches work: a variable that is both access: rw and has a Modbus source is a write-through variable. Toggle it on a screen and the board pushes the new value to the slave the moment it changes — a coil write for a bool. The cyclic read then keeps it honest: if the slave rejects or overrides the value, the read brings the truth back.

Note what maps where: the master's heat_a has no access: rw — it is a display of coil 3, nothing more. Only the cmd_* trio writes.

The screen

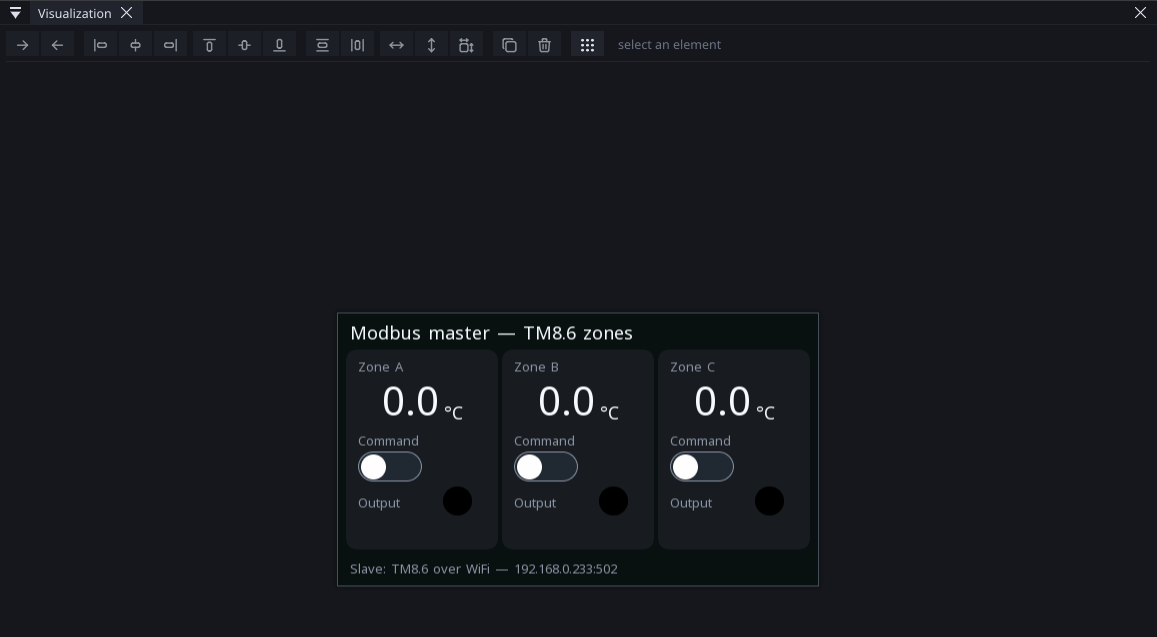

One HMI screen, three identical cards — temperature, a Command switch, an Output LED:

The switch binds to cmd_x, the LED to heat_x. That pairing puts the interlock on display: flip the switch with a healthy probe and the LED follows; disconnect the probe and the switch stays on while the LED goes dark — the slave refusing, visibly. A WEBview copy of the same screen serves phones from the master too.

---

Bringing the pair up

1. The slave first, over USB. The first download carries the WiFi credentials, so it has to travel over the cable: compile tm8_6_modbus_slave.yaml and download. After the restart the board joins the network.

2. Find it. Open the device scanner (the button). The board answers twice — on its COM port and, a few seconds later, from its WiFi address:



   The Program column is the point: tm8_6_modbus_slave at 192.168.0.233 — the address the master's variables must name.

3. Fix the address. Reserve that IP on the router, and make sure the master's ip: fields say it.

4. The master. Compile f7_modbus_master.yaml, download over ethernet or USB. From its restart on, the temperatures appear on the glass within a second or two.
5. Prove the interlock. Flip a Command switch — the Output LED follows and the SSR on the TM8.6 clicks. Then pull that zone's PT100 out of its terminal: the alarm fires after three seconds, the output drops, and the switch stays where the operator left it — with a dark LED beside it telling the truth.

While both run, online monitoring on either board shows the pair live: watch cmd_a arrive on the slave a poll cycle after the master's switch flips.

---

When it does not work

Symptom	Look at
No temperatures on the master	is the slave on the network? The scanner must show it. Then the IP in the master's variables — a changed DHCP lease is the classic
Temperatures are nonsense values	word_order differs between the two ends — see What Modbus is
Values shifted by one register	an address written from a 1-based manual — the map is 0-based protocol addresses
Switch flips but nothing happens	the zone's probe: ok_x false means the slave is refusing on purpose — check the alarm table
Everything works, then stops after a router restart	the DHCP reservation from step 3 was skipped

---
