Hot tank

A complete, working control system for a hot tank in cosmetics production — a three-zone heated bath of the kind that keeps creams, emulsions and oils at their working temperature. One board sits at the tank: it measures three PT100 probes, one per heating zone, and switches three SSR heater outputs. A touch panel operates it, a phone mirrors it, and an MQTT uplink reports the whole tank to a SCADA anywhere in the world. The two boards find each other over their own WiFi — no router, no plant infrastructure required — and everything an operator or an integrator needs to know is on this page: every screen, every state, every mode, every setting, every protection and the measured cost of all of it.

The projects are installed with the editor in examples\wifi_pair:

inoCORE32-TM8.6 — at the tank stepHMI32.4 — at the operator
Role measures, regulates, owns the heaters, raises the WiFi, reports to SCADA displays, commands, holds the settings pages
Processor ESP32-PICO-V3-02, 2× 240 MHz ESP32-S3, 2× 240 MHz
Memory 8 MB flash, 2 MB PSRAM 16 MB flash, 8 MB PSRAM
Display none — WEBview to a phone 4,3" 480×272, SSD1963, capacitive touch
Process I/O 3× MAX31865 (PT100), 3× SSR 240 V/16 A
Buses WiFi (AP + uplink), CAN, RS485, SPI WiFi, CAN, RS485
Project file tm8_6_wifi_zones.yaml stephmi_wifi_panel.yaml

The design rule underneath everything

The zone board owns its outputs. The panel asks — a setpoint, a manual command, a mode — and the zone board decides, with its own interlocks, its own thermostat and its own link watchdog. If the panel disappears, the process side fails to a safe state on its own. Every behaviour described below follows from this split.


How the two boards talk

The zone board raises its own access point (ctrl32-zones), and the panel joins it as a station. The AP side of an ESP32 network is always 192.168.4.1, which is why the process board hosts: the address the panel polls can never go stale. Over that link runs Modbus TCP — the panel reads the temperatures and states ten times a second and writes settings and commands the moment they change.

The zone board's radio wears two hats at once (mode: apsta): the same chip that hosts the pair's private network also joins the plant WiFi as a station. That uplink carries the MQTT reporting — and nothing else depends on it: unplug the plant network and the tank, the panel and every protection keep running exactly as before.

Two heartbeats ride along:

  • the zone board blinks beat twice a second — the panel's Link lamp shows it directly. A blinking lamp is the proof that data is flowing; a frozen lamp says it is not. No extra logic is involved, staleness shows itself.
  • the panel blinks panel_beat back. On the zone board every edge of that blink retriggers a 3-second watchdog — three seconds of silence and every heater drops, whatever the last command said. Commands, mode and settings survive the outage, so normal operation resumes by itself when the panel returns.

The five thermostat variables

One zone's thermostat is five whole-degree variables. Everything except the setpoint is an offset from it — change the setpoint and the whole ladder of lines moves with it:

Variable Meaning Default
Setpoint the temperature the zone should hold 20 °C
Band + heat switches OFF at setpoint + Band+ 5
Band − heat switches ON at setpoint − Band− 5
Alarm + high alarm at setpoint + Alarm+ 20
Alarm − low alarm at setpoint − Alarm− 10

With the defaults and a setpoint of 20 °C, the ladder for a zone reads:

Line Where What happens there
40 °C setpoint + 20 high alarm — the control has failed upward
25 °C setpoint + 5 heat OFF — top of the control band
20 °C setpoint the set temperature
15 °C setpoint − 5 heat ON — bottom of the control band
10 °C setpoint − 10 low alarm — the control has failed downward

The temperature therefore cycles between 15 and 25 °C in normal automatic operation, and the alarm lines sit deliberately outside that band: an alarm never fires because the control is cycling, only because it has genuinely lost the zone.

All fifteen variables (five per zone) are set on the panel's protected Settings page; the setpoint alone is also editable right on the Home page, because it is the everyday knob. The zone board persists all of them — a power cut changes nothing.


Operating modes

The system has one global mode, switched on the protected Settings page and remembered across power cuts.

AUTO

Each zone runs an independent on/off thermostat across its band: the heater switches ON when the temperature falls under setpoint − Band− and OFF when it rises over setpoint + Band+. One comparator with hysteresis per zone is the whole controller — there is nothing to tune, the band is the behaviour. The Home cards show AUTO where the manual switches would be.

MANUAL

The operator drives the heaters directly: toggle switches appear on the Home cards and each one commands its zone's output. This mode exists for commissioning and service, and that is exactly why the switches are invisible in AUTO — nobody can flip a heater in passing, because the control that would do it is not on the glass at all. Entering manual requires the access code (the mode switch lives behind it).

What no mode can override

Three gates sit between any request and a physical heater, in both modes:

  1. The probe interlock — a zone whose sensor reads like a broken PT100 (below 2 °C, the signature of a loose or shorted probe) refuses to heat, whatever asks.
  2. The link watchdog — if the panel stops blinking for 3 seconds, every heater drops. Manual commands included: a manual heater with a dead display is nobody's definition of supervised.
  3. The alarm engine never switches anything — it reports. The heaters are governed only by the gates above.

The screens

Four pages, reached by the bar at the bottom — the same four buttons everywhere, in a fixed order: Home, Trend, Alarms, Setup. The Setup button always leads through the access-code page.

The right-hand end of the title row on every page is reserved for the connection banner: invisible while the link lives, and a red strip with a yellow ! and TM8.6 not connected the moment the watchdog declares it dead.

Home

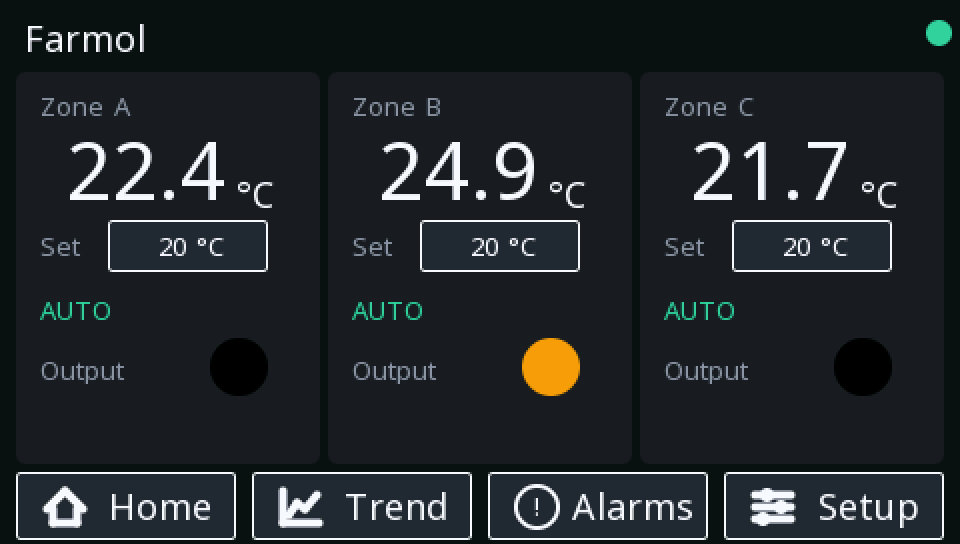

The Home page in AUTO: three zone cards with the large current temperature, the small editable setpoint, the AUTO badge and the output lamp; zone B is heating

One card per zone:

Element Meaning
large number the current temperature, one decimal
Set field the setpoint — touch it and a keypad opens; the new value is on the zone board within a poll cycle and persists there
AUTO badge / switch in AUTO the badge; in MANUAL the command switch (below)
Output lamp the REAL state of the SSR output, read back from the zone board — not the wish, the fact
link dot (top right, after the banner strip) blinks with the zone board's heartbeat; frozen = link down

In MANUAL the badge gives way to the command switch:

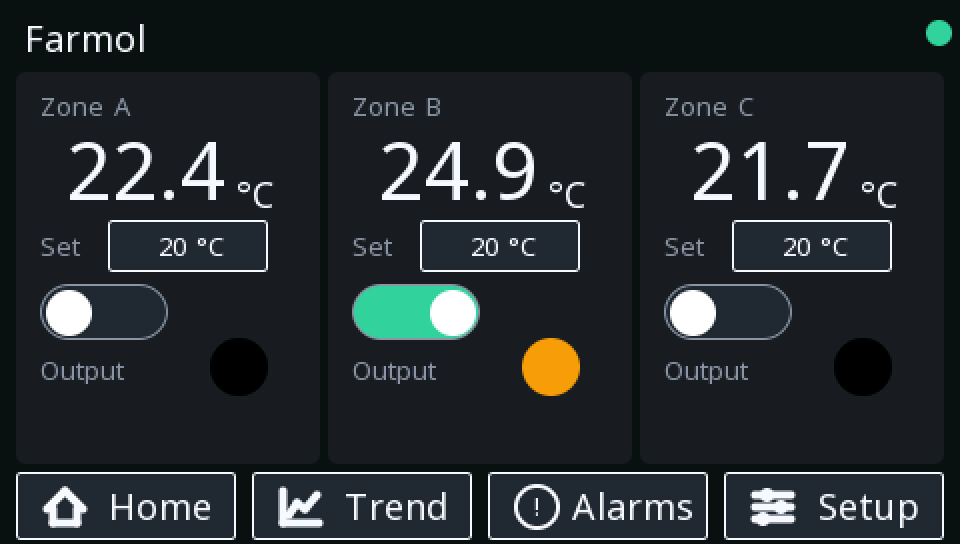

The Home page in MANUAL: the toggle switches replace the AUTO badges; zone B is commanded on and its output lamp confirms it

The switch requests; the Output lamp reports. When they disagree — switch on, lamp dark — one of the gates said no, and the Alarms page says which.

When the link dies, the banner takes the title row and the values freeze at their last known state:

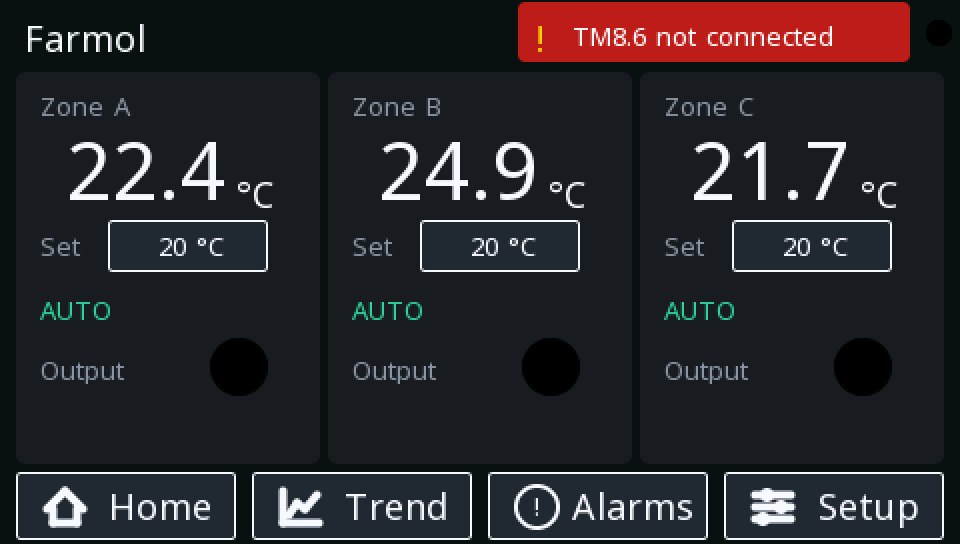

The Home page with the link down: the red banner with the yellow exclamation mark, the Link lamp frozen, every output off

At that same moment the zone board has already dropped its heaters — the banner and the protection are two views of the same watchdog.

Trend

The Trend page: one mini chart per zone, each plotting the current temperature and the setpoint over eight hours

Three charts, one per zone, each with two curves: the current temperature and the setpoint, so a setpoint change is visible in the history exactly when it happened. The window is 8 hours, one sample per minute (480 samples per curve). The rings live in the panel's RAM: a panel restart starts the history afresh.

Alarms

The Alarms page: the alarm table with an active high-limit alarm on zone A

The complete alarm list of the system:

Alarm text Priority Cause Delay
Zone X: over alarm limit warning temperature above setpoint + Alarm+ 2 s
Zone X: under alarm limit warning temperature below setpoint − Alarm− 2 s
Zone X: sensor fault fault the probe reads below 2 °C — loose, shorted or broken PT100 3 s
Display link lost — heating off fault (on the zone board) the panel stopped blinking; heaters dropped 1 s
Link to zones lost — heating is off fault (on the panel) the zone board stopped blinking 1 s

The zone board evaluates its zone alarms and the panel mirrors them, so the history and the acknowledgement live where the operator is — and the zone board's own WEBview shows its half to a phone even with the panel gone.

The delays filter waves: a splash of cold air across a probe should not page anybody. A limit alarm clears itself when the temperature returns inside its line; a sensor fault clears when the probe reads sanely again.

The access code

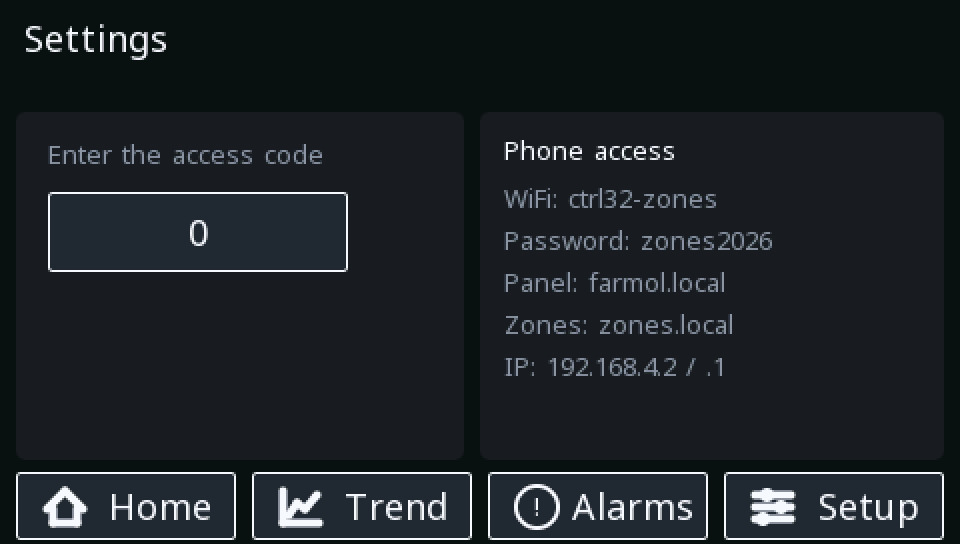

The access-code page: the code field on the left, the phone connection details on the right

The Setup button leads here, never straight to the settings — and the page doubles as the connection notice: the Phone access card spells out the pair's WiFi name and password, both .local names and both raw addresses, because the person standing at the panel is exactly the one who wants to join with a phone.

The operator types the access code — the keypad opens on touch — and only the right code makes the way in appear:

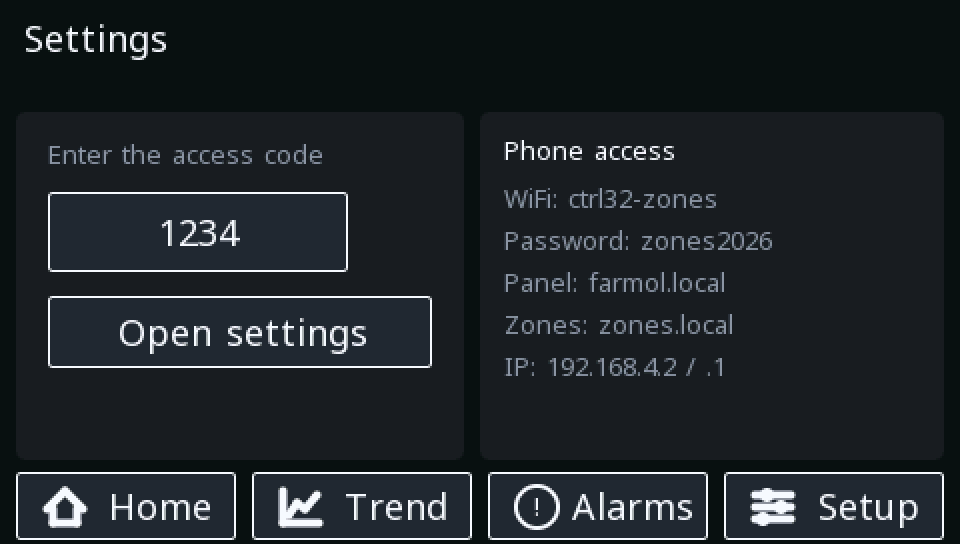

The access-code page after the right code: the Open settings button has appeared

  • The code is fixed in the program (as delivered: 1234). It is compiled into the panel's logic; changing it means editing one value in the project and downloading — it is not a setting, on purpose, so it cannot be changed from the glass.
  • Five minutes after unlocking the program clears the entry and the way in disappears again. Walking away from an unlocked panel is therefore a five-minute exposure, not a permanent one.
  • A wrong entry simply does nothing — there is nothing to guess against except the keypad itself.

Settings

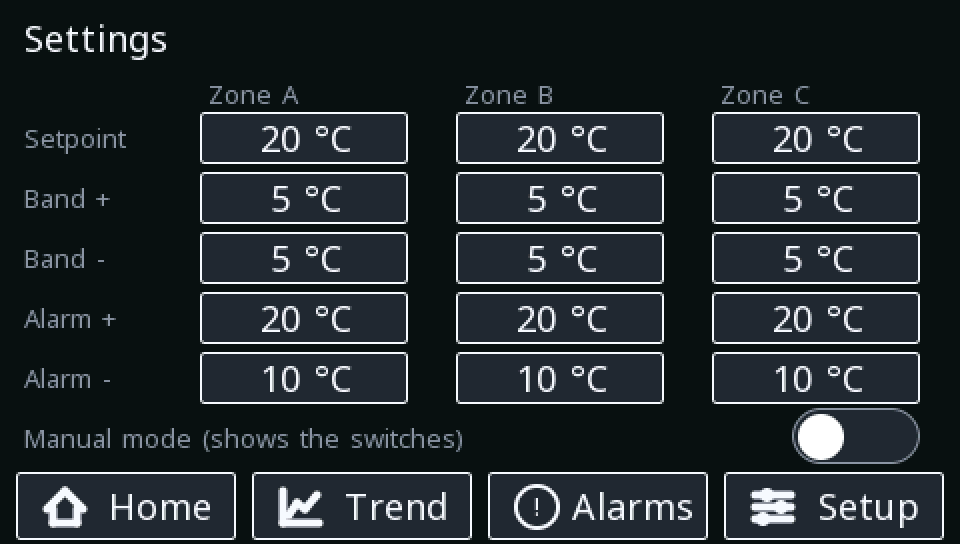

The Settings page: the five thermostat variables as a grid of three zone columns, and the mode switch below

The protected page. All fifteen thermostat variables as a grid — rows are the variables, columns the zones — plus the mode:

Row Range Effect
Setpoint 0–90 the zone's set temperature (also editable on Home)
Band + 1–30 heat OFF line, degrees above the setpoint
Band - 1–30 heat ON line, degrees below the setpoint
Alarm + 1–40 high alarm line, degrees above the setpoint
Alarm - 1–40 low alarm line, degrees below the setpoint
Manual mode on/off ON shows the command switches on Home and hands the heaters to the operator

Every field validates its range at the keypad — a value outside it is not accepted. Every change lands on the zone board within a poll cycle and is persisted there immediately (throttled, so the storage is not worn out by a spinning knob).


The phone view

Both boards serve a WEBview over the pair's own network. Join the WiFi ctrl32-zones (password as delivered: zones2026 — both are printed on the panel's access-code page, and both change in the project files) and open:

  • http://zones.local (= 192.168.4.1) — the zone board: the three temperatures, the real output states and the alarm table, with a Link lamp blinking with the panel's heartbeat. This view works even when the panel is down — which is precisely when it is most useful.
  • http://farmol.local (= 192.168.4.2 — as the network's first client the panel takes the first lease): the panel's full visualization, laid out for a phone. This is not a summary of the glass; it is the same five pages, described below.

Both boards announce their names over mDNS, so the .local addresses work with no IP known; the raw addresses stay as the fallback for a phone whose browser does not resolve them. All four are printed on the panel's access-code page.

The pair's network is its own island. Nothing here reaches the internet, and per the product's network stance it should stay that way.

The mobile pages

The panel's phone view carries the identical page set, states and protections as the glass — the browser evaluates the same records, so a switch hidden in AUTO on the glass is hidden on the phone too, and the red banner appears in both places in the same moment. The page bar is a two-by-two grid of thumb-sized buttons; the banner has its own reserved strip under the title.

Home — the three zones stacked, each with the large current temperature, the editable setpoint and the real output state. In AUTO the cards carry the badge; in MANUAL the command switches appear, exactly as on the glass:

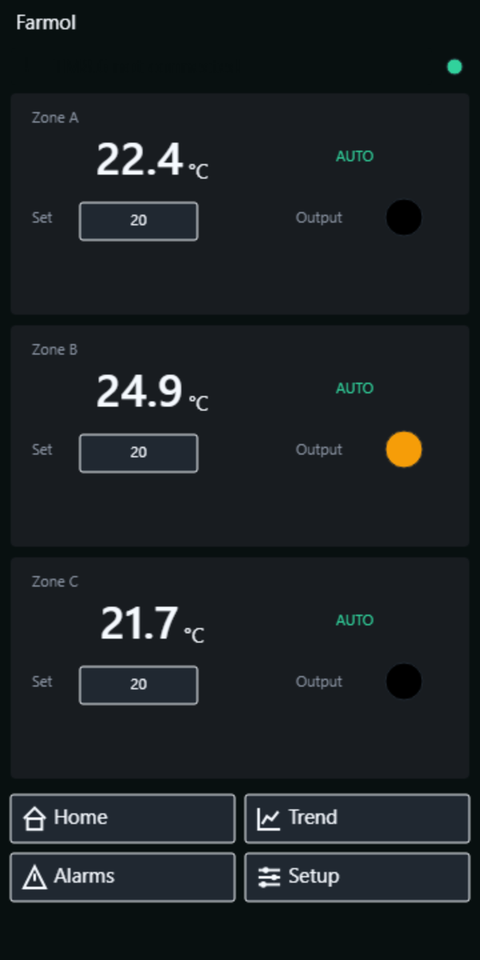

The mobile Home page in AUTO: stacked zone cards with the current temperature, the setpoint field, the AUTO badge and the output lamp

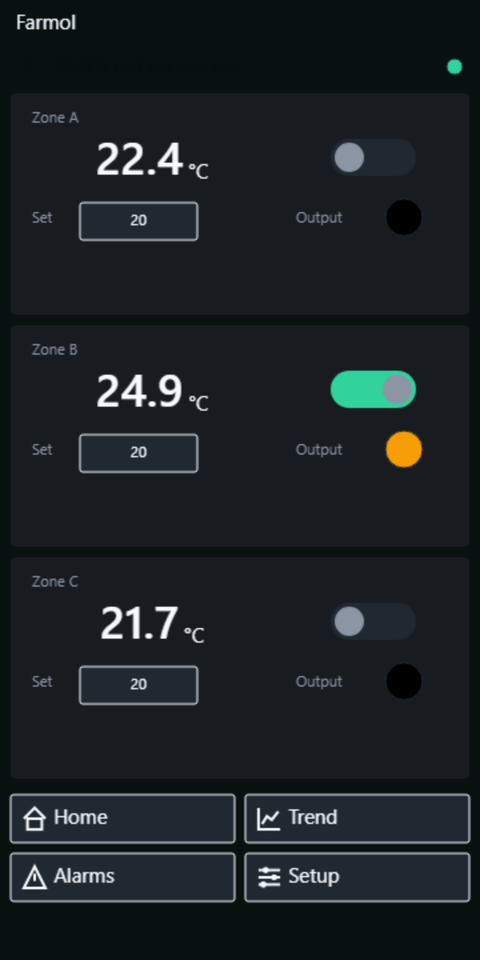

The mobile Home page in MANUAL: the command switches replace the AUTO badges; zone B is commanded on

Trend — the same three eight-hour charts, current and set temperature per zone:

The mobile Trend page: three stacked charts, one per zone

Alarms — the alarm table, sized for a phone:

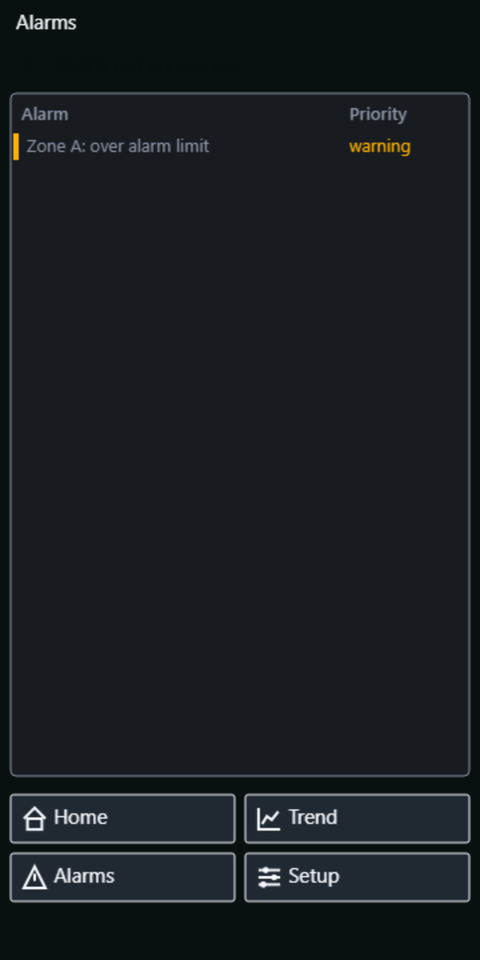

The mobile Alarms page with an active high-limit alarm on zone A

Setup — the same access code guards the same settings. The way in appears only on the right code, and the five-minute auto-lock applies to the phone exactly as to the glass (it is the panel's logic that locks, not the page):

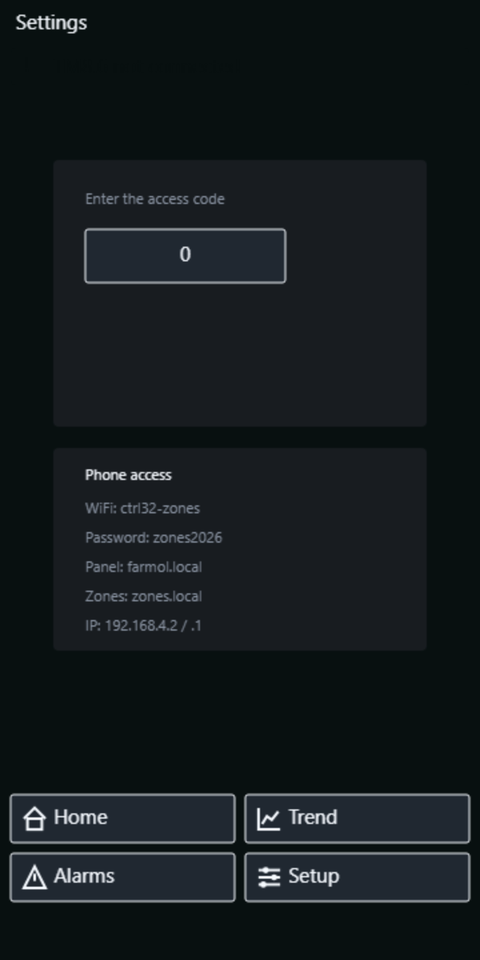

The mobile access-code page: the code field, no way in

The mobile access-code page after the right code: the Open settings button has appeared

Settings — all fifteen thermostat variables and the mode, one zone card under another:

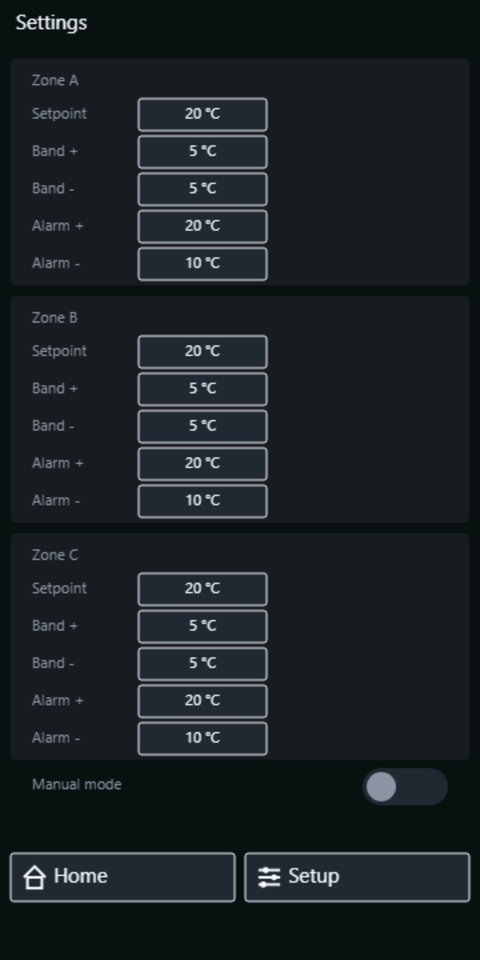

The mobile Settings page: the five variables per zone stacked, and the Manual mode switch

Writes from the phone follow the same rule as everything else: the page requests, the boards decide. A setpoint typed on a phone lands on the zone board through the panel and persists there — and if two people edit at once, the last write wins and both pages show it within a second.


SCADA over MQTT

The tank reports itself to the outside world over MQTT — the uplink half of the zone board's radio carries it. Twenty variables publish under ctrl32/hottank/ as plain per-variable topics, at most once a second and only when a value changed:

Topics Content
temp_a/b/c the three zone temperatures
sp_a/b/c the setpoints (writable)
mode_man, cmd_a/b/c the mode and the manual commands (writable)
heat_a/b/c the REAL heater states
trip_hi_*, trip_lo_* the alarm trips
link_ok the panel link
status online, and a broker-kept last will when the board drops

A SCADA writes by publishing to <topic>/set — for example 20 to ctrl32/hottank/sp_a/set. The same rule as everywhere else in this system: the write flag in the project is the permission, a command on anything not marked writable is refused, and the board republishes the accepted value so the SCADA sees what actually happened, not what it asked for.

The bench ran a public broker on purpose

This page's measurements were taken against a public internet broker, precisely to see the behaviour with a SCADA "half a world away". A production site keeps the broker on its own network — the MQTT credentials travel in plain text and the board does not belong on the open internet. See MQTT telemetry.

The measured cost

Every number below is the board's own diagnostic line (cycle = the 10 ms control cycle: current / min / max in µs), captured on the running tank:

State Cycle (µs) Overruns Heap low mark
pair only — no uplink, no MQTT 93 / 77 / 164 0 2 120 kB
+ WiFi uplink + MQTT connected, quiet 109 / 77 / 449 0 2 102 kB
+ SCADA load: 4 writes/s + full echo, 60 s (240 commands, 341 messages) 108 / 77 / 449 0 2 102 kB

Reading it: the uplink and the broker connection cost ~16 µs of an average cycle (0.16 % of the period) and ~18 kB of memory, once. The SCADA hammering the tank with commands cost nothing measurable — the communication runs beside the control, never inside it, and the cycle never overran. The panel's numbers did not move at all (38 / 19 / 60 µs throughout). This is the degradation rule (logic > communication > graphics) holding under a deliberate stress, measured rather than promised.

Power loss and restarts

What Survives a zone-board power cut?
Setpoints, bands, alarm offsets yes — persisted on the zone board
AUTO/MANUAL mode yes — persisted (a power cut must not hand a manual cabinet back to the automatics)
Manual commands (cmd_*) no — a restart begins with every command off
Alarm history on the panel no — the history lives in panel RAM
Trend history no — the rings live in panel RAM

A panel restart alone changes nothing at the process: the zone board drops its heaters for the few seconds the heartbeat is missing and resumes when the panel is back. The panel never pushes a value at the zone board on boot — it reads first, so the zone board's persisted state is the truth after any restart, on either side.


The register map

For an integrator who wants to sit beside the panel — a SCADA, a logger — the zone board answers Modbus TCP on 192.168.4.1:502, unit 1, word order big. The full map (0-based protocol addresses, manual numbers in brackets — see What Modbus is):

Address Variable Access
holding 0–1 (40001) temp_a, f32 read
holding 2–3 (40003) temp_b, f32 read
holding 4–5 (40005) temp_c, f32 read
holding 6/7/8 (40007…) sp_a/b/c read/write
holding 9/10/11 band_hi_a/b/c read/write
holding 12/13/14 band_lo_a/b/c read/write
holding 15/16/17 alarm_hi_a/b/c read/write
holding 18/19/20 alarm_lo_a/b/c read/write
coil 0/1/2 cmd_a/b/c — manual commands read/write
coil 3/4/5 heat_a/b/c — the REAL outputs read
coil 6 beat — the zone board's heartbeat read
coil 7 panel_beat — the panel writes its blink here read/write
coil 8/9/10 trip_hi_a/b/c — over the alarm line read
coil 11/12/13 trip_lo_a/b/c — under the alarm line read
coil 14 link_ok — the panel is alive read
coil 15 mode_man — 1 = manual read/write

Writes to anything not marked writable are refused with a Modbus exception. The settings registers are whole degrees in one register each; the temperatures are f32 across two registers, big word first.


Commissioning

  1. Zone board first, over USB — the first download carries the AP configuration. After the restart the ctrl32-zones network is on the air.
  2. Panel second — download its project; it joins the network and the temperatures appear within seconds. Both halves can also be found and addressed later with the device scanner.
  3. Check the ladder — with everything at defaults each zone holds 15–25 °C. Set the real setpoints from Home, the bands and alarm offsets from Settings (code 1234).
  4. Prove the protections — pull a probe: its zone drops out and sensor fault appears. Power the panel off: the heaters drop within 3 seconds and return with the panel. Neither test can hurt anything, and both are worth seeing once before trusting the cabinet to them.

To change the access code, edit the one comparison in stephmi_wifi_panel.yaml (the block named gate) and download the panel again.


Troubleshooting

Symptom Look at
Red banner, values frozen the pair's WiFi: is the zone board powered? Within range? The zone board side has already secured the heaters
A .local address does not open not every phone resolves mDNS — use the raw address from the access-code page
A switch is on but the Output lamp is dark one of the gates said no — the Alarms page names it (sensor fault, or the link)
Temperatures read plainly wrong on all zones the probe wiring and the reference-resistor setting belong together — see the project file's peripheral section
A zone cycles wider than expected the band offsets on Settings — the cycle is setpoint − Band− to setpoint + Band+
Limit alarms fire during normal cycling the alarm offsets are inside the band — Alarm+ must be greater than Band+, Alarm− greater than Band−
The Set field will not take a value it is outside the field's range — the keypad refuses rather than clamps
Setup opens but the way in vanished the five-minute auto-lock — enter the code again
